SKU: MGADK.

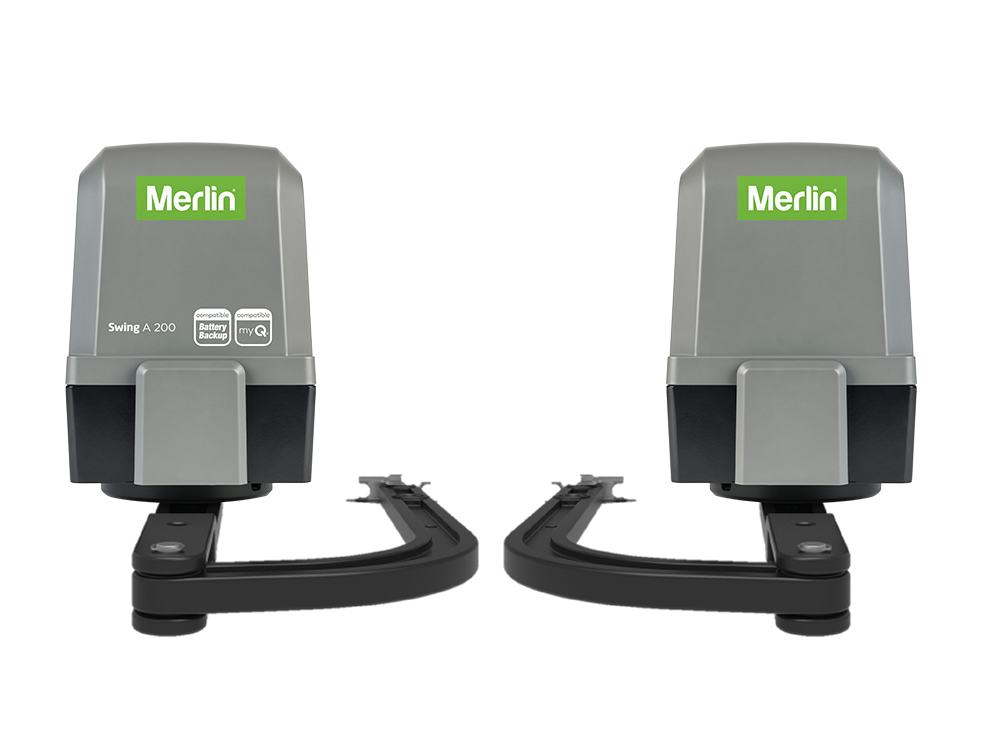

Swing A 200 Articulated Arm Dual Swing Gate Opener MGADK/ MGADK-LV

MGADK

From

Description:


Merlin's Swing A 200 Swing Gate Opener is suitable for residential dual swing gates up to 5 metres.

IP44 rated, the Merlin Swing A 200 provides heavy lifting power performance for two swing gates up to:

  • 200kg for 1.5m gate
  • 150kg for 2m gate
  • 100kg for 2.5m gate

Mains or Low Voltage options available.  myQ capable and Battery Backup compatible.

Powerful, quiet and compliant to Australian and New Zealand Standards, enjoy complete peace of mind with 3 Year Warranty and built in premium safety reversal technology, to ensure your family and possessions are protected.

Loaded with Merlin Security+2.0 encryption rolling code technology means perfect operation under all environment conditions and from a greater distance than ever before.

The myQ App will run on Apple iOS devices (e.g. iPhone) using iOS 14.0* or higher, Apple Watch requires watchOS 7 or higher. Android devices requires Android 7.0 Nougat* or higher. Windows and Blackberry devices are not compatible.

*  As updated versions of the myQ App becomes available, older iOS' may no longer be compatible.

  • Product Features
  • Merlin Safety Features
  • Specifications
  • Downloads
SMART
myQ Compatible MYQ CAPABLE TECHNOLOGY lets users create schedules, monitor, receive alerts and control the gate opener away from home.1
LCD Display LCD DISPLAY for fast and intuitive programming setup.
Soft Start and Stop SOFT-START AND SOFT-STOP for smooth operation.
Speed Adjustment SPEED ADJUSTMENT allows you to increase and decrease opening and closing gate speeds.
Pedestrian Mode PEDESTRIAN MODE allows for customised gate opening access.
QUIET & RELIABLE
240V 240V MAINS VOLTAGE (Low Voltage option available)
3 Year Warranty 3-YEAR WARRANTY
IP44 IP44 WEATHER RESISTANT ingress protection IP44 suitable for outdoor installation.
Quit DC Motor QUIET DC MOTOR eliminates noise and vibrations, provides smooth operation.
Battery Backup Compatible BATTERY BACKUP COMPATIBLE ensures access even when the power is out.2
120 Degree 120° WIDE OPENING ANGLE
Double Swing Gates Up to 6 Mtrs DOUBLE SWING GATES UP TO 6 METRES
SAFE & SECURE
Security +2.0 SECURITY+ 2.0® sends a new code with every remote click.
Safety Reverse PREMIUM AUTOMATIC SAFETY REVERSE function will allow your gate to stop and reverse automatically if obstructed in opening or closing.
Time-to-close TIMER-TO-CLOSE automatically closes the door after a pre-set amount of time.3
Long Range Transmitter IMPROVED TRANSMITTER RANGE has up to 18% better range meaning you can start opening your gate sooner.4
Automatic force sensing AUTOMATIC FORCE SENSING monitors and adjusts the force needed to open your gate with each operation.
Disengagement Mechanism DISENGAGEMENT MECHANISM allows you to manually open the gate whenever needed.



Additional purchase of Merlin myQ Gateway and Safety IR Beam accessories required to enable myQ functionality.

Additional purchase of Merlin Battery Backup accessory required to enable Battery Backup functionality

Safety IR Beams must be installed to enable the use of Timer-to-Close. See User Guide for additional information. Smartphone not included.

When compared to other available Merlin products.

Premium Automatic Safety Reverse

  • Function will allow your gate to stop and reverse automatically if obstructed while opening or closing.

Automatic Force Sensing

  • Monitors and adjusts the force needed to open your gate with each operation.

Disengagement Mechanism

  • Allows you to manually open the gate whenever needed.

General

Maximum Gate Width & Weights

  • Maximum Gate Width
    • 200kg for 1.5m gate
    • 150kg for 2m gate
    • 100kg for 2.5m gate
  • Maximum width for double gates: 5m

Standard Specifications

  • Main AC Supply: 220-240Vac; 50/60Hz or 24V Low Voltage
  • Motor Voltage: 24 VDC
  • Input Power: 100 W
  • Ambient Temperature Range: -20 - +55*C
  • Max peak pulling force: 200 Nm
  • Max Travel Speed:Opens 120' in 13 - 15 seconds
  • Radio Frequency: 433.30, 433.92, 434.54 MHz with Security+ 2.0 technology
  • Compatible with myQ technology
  • Gate opener capacity of up to 64 memory registers
  • IP44 Weather Resistant

Door Specs

Door Opening and Closing Times

Door Height
